Double Shaft Shredder for Waste Recycling

With the increasing amount of municipal, industrial and commercial waste, efficient waste reduction and material recovery have become increasingly important. A double shaft shredder for waste recycling is a heavy-duty size reduction machine designed to process bulky, tough and mixed waste materials. With two counter-rotating shafts and high-strength cutting blades, the machine can tear, shear and compress waste into smaller pieces, preparing it for sorting, separation and further recycling.

What Is a Double Shaft Shredder?

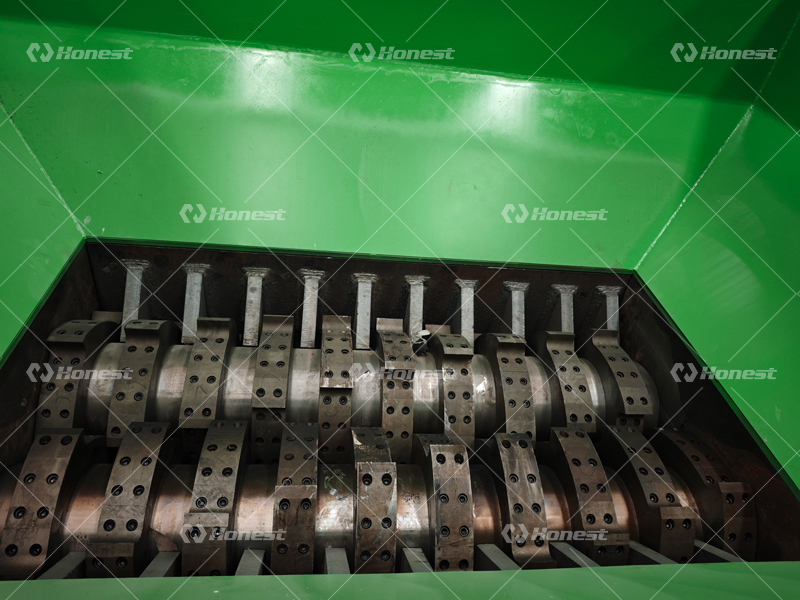

Double shaft shredder, also called a twin shaft shredder or dual shaft shredder, is an industrial recycling machine equipped with two parallel shafts. Multiple alloy-steel cutters are installed on the shafts and rotate in opposite directions.

Unlike high-speed crushers that mainly rely on impact force, a double shaft shredder generally uses a low-speed and high-torque working principle. This makes it particularly suitable for large, irregular and difficult-to-process materials. It is commonly used as a primary shredding machine at the beginning of waste recycling lines.

How Does a Double Shaft Shredder Work?

The working process of a double shaft shredder for waste recycling can be divided into several steps:

1. Feeding: Waste materials are loaded into the hopper manually or by a conveyor or other feeding equipment.
2. Grabbing: The two counter-rotating shafts pull bulky materials into the cutting chamber.
3. Shearing and Tearing: Interlocking cutters grab, shear, tear and compress the material between the two shafts.
4. Size Reduction: Continuous cutting reduces the volume and size of the waste. The final particle size depends on the cutter configuration, shaft design and processing requirements.
5. Discharge: The shredded material is discharged from the machine and transferred to subsequent sorting, screening, grinding or recycling equipment.

An automatic control system can also provide forward/reverse operation and overload protection, helping improve equipment stability and reduce the risk of jamming.

Advantages of Double Shaft Shredder for Waste Recycling

A high-quality double shaft waste shredder offers several important advantages:

1. High Torque and Strong Shredding Capacity

The low-speed, high-torque drive system provides strong cutting force for bulky and tough waste such as tires, plastics, wood, metal-containing waste and industrial scrap.

2. Wide Material Adaptability

The machine can process mixed and irregular materials without requiring precise pre-cutting, making it suitable for complex waste recycling applications.

3. Large Processing Capacity

Two shafts work simultaneously, allowing the shredder to process large quantities of waste continuously. Capacity can be customized according to material type, feed size and required throughput.

4. Reduced Waste Volume

Shredding significantly reduces the volume of bulky waste, making transportation, storage and subsequent processing more efficient.

5. Easy Integration

A double shaft shredder can be integrated with conveyors, magnetic separators, trommel screens, air separators and other recycling equipment to form a complete waste processing line.

What Waste Can a Double Shaft Shredder Process?

The versatility of a double shaft shredder for waste recycling makes it suitable for many materials, including:

• Municipal solid waste (MSW)
• Industrial waste
• Waste plastics and plastic containers
• Waste tires and rubber
• Wood pallets and furniture
• Paper and cardboard
• Textiles and mattresses
• Electronic waste
• Scrap metal and light metal products
• Construction and demolition waste
• Household appliances
• Packaging waste
• Cables and mixed waste

The cutter design should be selected according to the characteristics of the feedstock. For example, waste tires require strong wear-resistant cutters, while plastic and municipal waste may require a different cutter configuration.

Applications of Double Shaft Shredder

A double shaft shredder machine can be used in many recycling and waste treatment industries.

In plastic recycling, it reduces plastic containers, drums, pipes and bulky plastic waste before washing and granulation.

In tire recycling, it performs primary shredding of waste tires before steel wire separation, further crushing and rubber granulation.

In wood recycling, it processes waste pallets, furniture and other large wooden materials into smaller pieces for further processing or biomass utilization.

In municipal waste treatment, it reduces mixed household waste before screening, sorting and RDF/SRF production.

In e-waste recycling, it can reduce discarded electrical and electronic equipment before subsequent sorting and metal recovery.

For industrial waste recycling, it provides an effective primary size-reduction solution for production scraps, packaging waste and mixed industrial residues.

How to Choose the Right Double Shaft Shredder?

When purchasing a double shaft shredder for waste recycling, consider the following factors:

1. Material type and hardness
2. Maximum feed size
3. Required processing capacity
4. Desired output size
5. Blade material and configuration
6. Motor and gearbox power
7. Continuous operating requirements
8. Automatic control and overload protection
9. Maintenance and spare-parts availability
10. Integration with downstream recycling equipment

For bulky, mixed and difficult waste, a double shaft shredder is usually an excellent primary size-reduction choice. However, if a highly uniform and precisely controlled final particle size is required, secondary shredding, crushing or screening equipment may be needed.

Double shaft shredder for waste recycling is an important piece of equipment for modern waste management and resource recovery. Its two counter-rotating shafts, low-speed high-torque operation and strong cutting capability allow it to process a wide variety of bulky and difficult waste materials. By reducing waste size and volume, the machine makes subsequent sorting, separation and recycling more efficient.

Whether used for plastic recycling, tire recycling, wood recycling, municipal solid waste, e-waste or industrial waste, a properly configured double shaft shredder can serve as a reliable primary processing machine and help turn difficult waste streams into valuable recyclable resources.
