Glass Bottle Crushing and Sorting Machine

Video

Description

Glass Bottle Crushing and Sorting Machine is designed to crush waste glass bottles into smaller glass fragments and separate impurities to improve recycling efficiency. It is suitable for glass recycling plants, beverage factories, waste treatment centers, and municipal recycling facilities. The machine typically integrates a crushing system with screening and sorting equipment to process glass bottles of different sizes. Depending on the production requirements, it can be equipped with magnetic separators to remove metal caps and other ferrous impurities, as well as additional sorting devices to separate unwanted materials. The recovered glass cullet can be reused in glass manufacturing, construction materials, and other suitable industrial applications. With a compact structure, stable operation, and customizable configuration, this machine helps reduce waste volume, improve material recovery, and support efficient glass recycling.

Product Details

Glass Bottle Crushing and Sorting Machine is designed to process various types of waste glass bottles, including beverage bottles, beer bottles, wine bottles, and other discarded glass containers. It is suitable for glass recycling plants, beverage factories, municipal waste treatment centers, and resource recovery facilities. The machine can handle mixed glass bottles of different sizes and shapes, helping reduce bulky waste and prepare recyclable glass for further processing.

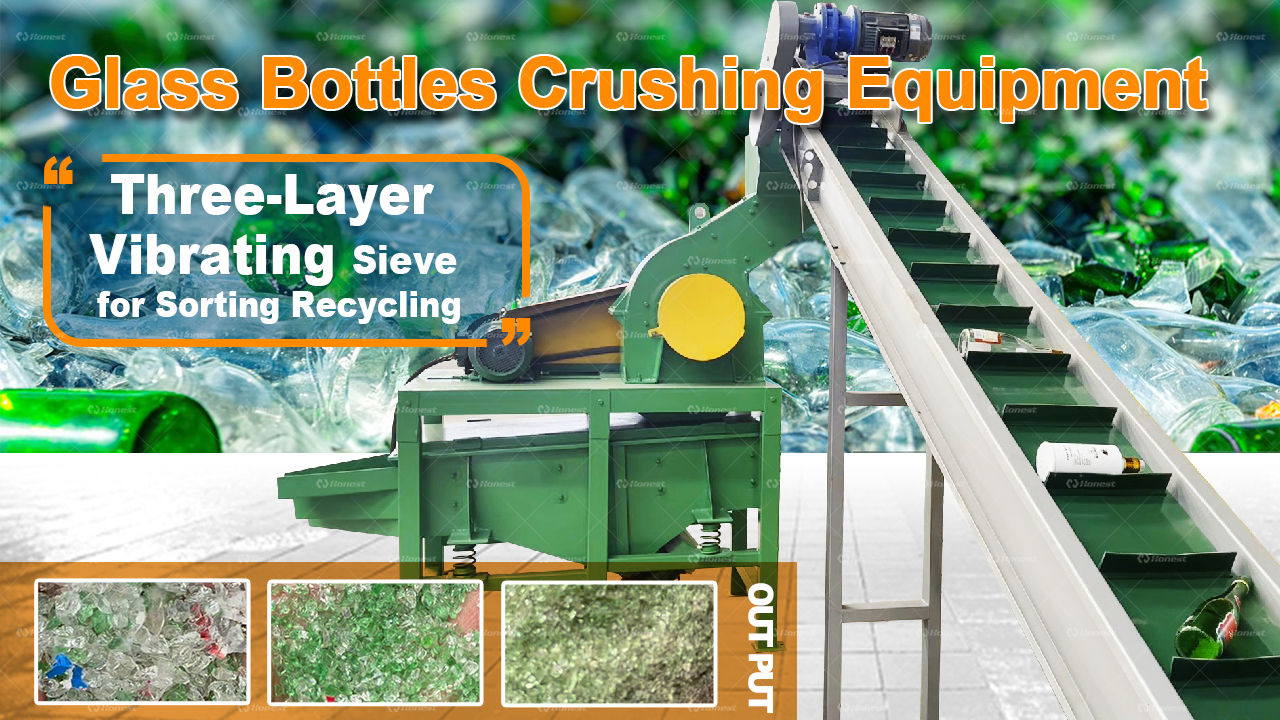

The machine typically consists of a feeding conveyor, crushing chamber, wear-resistant crushing components, vibrating screen, sorting system, discharge conveyor, and dust collection device. Depending on the required processing capacity and final product quality, it can be equipped with magnetic separators, air separators, and other sorting equipment. The modular structure allows operators to adjust the configuration according to the composition of the incoming materials and the desired glass particle size.

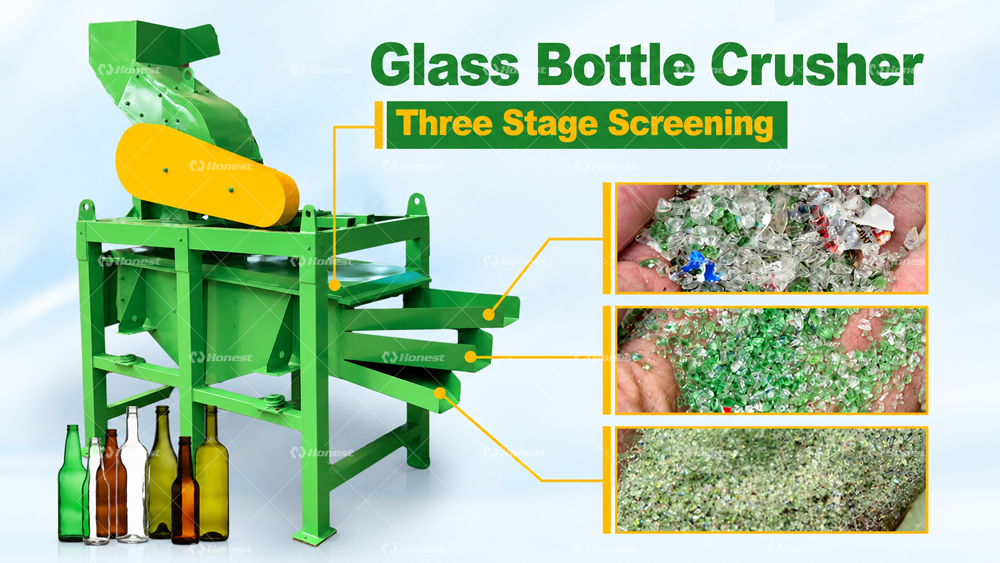

The working principle involves mechanical crushing followed by screening and separation. Waste glass bottles are fed into the crushing chamber, where rotating or impact-based crushing components break them into smaller glass fragments. The crushed material then passes through a vibrating screen, which separates particles according to size. Oversized fragments can be returned for further crushing, while qualified glass cullet proceeds to the sorting stage.

During the crushing and sorting process, magnetic separation can remove ferrous metal caps and other iron-containing impurities. Additional sorting equipment can separate suitable lightweight contaminants and other unwanted materials. After processing, the recovered glass cullet can be reused in glass bottle manufacturing, fiberglass production, construction materials, and other suitable applications. By integrating crushing, screening, and sorting, the machine improves recycling efficiency, reduces manual sorting requirements, and helps increase the recovery rate of reusable glass materials.
