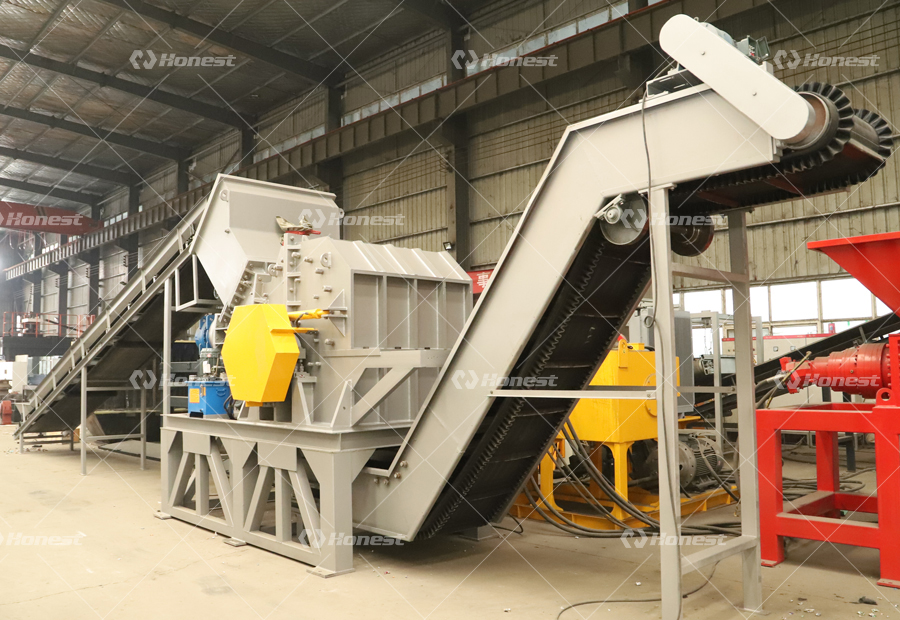

Heavy Duty Hammer Metal Shredder / Crusher Machine

Heavy Duty Hammer Metal Shredder / Crusher Machine is an industrial recycling machine designed to reduce bulky and tough metal scrap into smaller, more uniform pieces. It is widely used in scrap metal recycling plants because high-speed hammer impact can break, tear, and liberate different metal components for subsequent sorting and recovery.

1. What Metals Can a Heavy Duty Hammer Crusher Process?

A heavy duty hammer metal shredder is suitable for many types of ferrous and non-ferrous scrap, including:

• Scrap steel and iron
• Aluminum cans and profiles
• Aluminum wheels and engine blocks
• Copper-containing motor parts
• Brass and other non-ferrous scrap
• Metal drums and sheets
• Automobile bodies and dismantled vehicle parts
• Electrical motors and selected household appliances

Hammer mills are particularly useful for aluminum engine scrap and motor components because impact crushing can open the assemblies and expose valuable copper or aluminum for downstream separation.

However, extremely thick steel, large solid shafts, hazardous sealed containers, and other unbreakable materials may require pre-cutting, inspection, or a different type of shredder.

2. Advantages of a Heavy Duty Hammer Metal Shredder

The main advantages include:

1. High crushing efficiency: High-speed hammers deliver strong impact energy for rapid size reduction.
2. High throughput: Heavy-duty models can continuously process large quantities of scrap.
3. Excellent material liberation: Components such as copper, aluminum, steel, and attached non-metal materials can be separated more easily after crushing.
4. Uniform output: Replaceable screens or grates help control the discharge size.
5. Strong wear resistance: Replaceable liners and wear-resistant hammers extend service life.
6. Reduced scrap volume: Shredding increases bulk density and can reduce transportation and storage costs.
7. Easy integration: Magnetic separators, eddy current separators, air classifiers, and conveyors can be added to create a complete recycling line.

3. Heavy Duty Hammer Crusher Structure and Materials

The main components normally include a feeding hopper, heavy-duty steel housing, rotor, hammer assembly, breaker plates or liners, grate/screen, main shaft, bearings, drive motor, transmission system, discharge conveyor, and safety or overload protection system.

The housing is generally manufactured from high-strength steel plate. Internal liners protect the main frame from repeated impact and abrasion. The rotor must have sufficient strength and balance to withstand continuous high-speed operation. Hammer materials vary according to the application; manganese steel and specialized alloy steels are commonly used for wear components.

For heavy scrap applications, buyers should pay particular attention to the rotor strength, hammer weight, bearing quality, liner thickness, and overload protection system, rather than choosing a machine based only on motor power.

4. How Does a Hammer Metal Shredder Work?

The working principle is based mainly on high-speed impact, repeated collision, abrasion, and controlled screening.

First, scrap metal enters the crushing chamber through the feeding hopper. A powerful motor rotates the rotor at high speed. The hammers mounted on the rotor strike the incoming metal with substantial kinetic energy, breaking and deforming it.

The broken pieces then collide with liners and other material inside the chamber. Larger pieces remain in the crushing zone and receive additional impacts. Once the material becomes smaller than the grate or screen openings, it passes through and is discharged.

The crushed material can then pass through magnetic separation for ferrous metals and eddy current or other sorting technologies for non-ferrous metals.

5. How to Choose a Heavy Duty Hammer Metal Shredder Manufacturer?

Choosing the right heavy duty hammer metal shredder manufacturer is essential for production efficiency and long-term operating costs. Consider these factors:

• Material compatibility: Confirm that the manufacturer has experience with your specific scrap.
• Processing capacity: Match the machine’s capacity to your required tons per hour.
• Feed size: Check the maximum dimensions and thickness of your incoming scrap.
• Output size: Make sure the rotor, hammer configuration, and screen meet your required product size.
• Wear-part quality: Ask about hammer, liner, grate, and rotor materials.
• Safety system: Check for overload protection, emergency shutdown, and tramp-material protection.
• Complete-line capability: A manufacturer able to supply conveyors, magnetic separators, eddy current separators, dust collection, and control systems can simplify plant integration.
• After-sales service: Spare-parts availability, installation support, commissioning, and technical assistance are important for minimizing downtime.
• Real operating cases: Request videos, reference projects, and performance data from similar metal recycling applications.

Heavy Duty Hammer Metal Shredder / Crusher Machine is a powerful solution for processing steel, iron, aluminum, copper-containing scrap, automobile parts, motors, appliances, and other recyclable metals. Its high-speed impact principle provides efficient size reduction and material liberation, while a robust rotor, wear-resistant hammers, reinforced housing, and replaceable liners support heavy-duty operation. The best machine should be selected according to scrap type, feed size, required capacity, output size, downstream separation requirements, wear-part quality, and manufacturer service capability.
