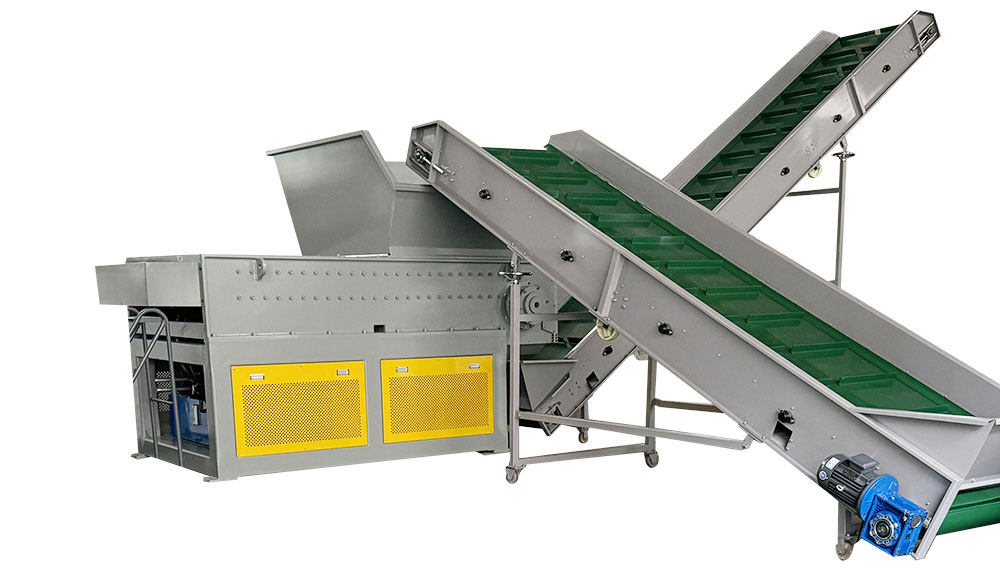

HNS series heavy duty single shaft shredder

Typical Applications Include:

Plastic materials – such as HDPE, PP, PVC, ABS, and PET blocks or lumps.
Wood waste – including pallets, wooden boards, and furniture scraps.
Rubber products – like tires, rubber sheets, and industrial rubber waste.
Paper and cardboard – waste cartons, packaging paper, and printed materials.
Textile waste – including fabric offcuts, old clothes, and industrial textiles.
E-waste components – such as circuit boards, casings, and cables.
Aluminum and copper scraps – light metal waste and profiles.
Plastic films and woven bags – including agricultural films and PP/PE bags.
Solid waste and industrial leftovers – municipal waste, bulky items, and production residues.

+ Add to Inquiry

+8618135670183

Description

The HNS Series Heavy Duty Single Shaft Shredder from Honest is a powerful and efficient machine designed for processing a wide range of solid waste materials. Equipped with a robust rotor, hydraulic pusher, and advanced PLC control system, it ensures stable operation, strong crushing capability, and high output efficiency even in demanding environments.

This shredder is suitable for handling materials such as plastic blocks, wood, rubber, paper, textiles, and light metals. Its heavy-duty structure and optimized cutting system allow it to process tough and bulky materials with ease, making it an ideal choice for recycling plants and industrial waste management applications.

With replaceable wear-resistant blades and a durable machine design, the HNS series offers long service life and reduced maintenance costs. Combining energy efficiency with reliable performance, it provides a cost-effective and dependable shredding solution for heavy-duty recycling and waste reduction tasks.

Features

Small square knives: more using life with changing cutting edges, and easy to change.
Three types of cutting rotor design: use different type of cutting rotor according to different materials

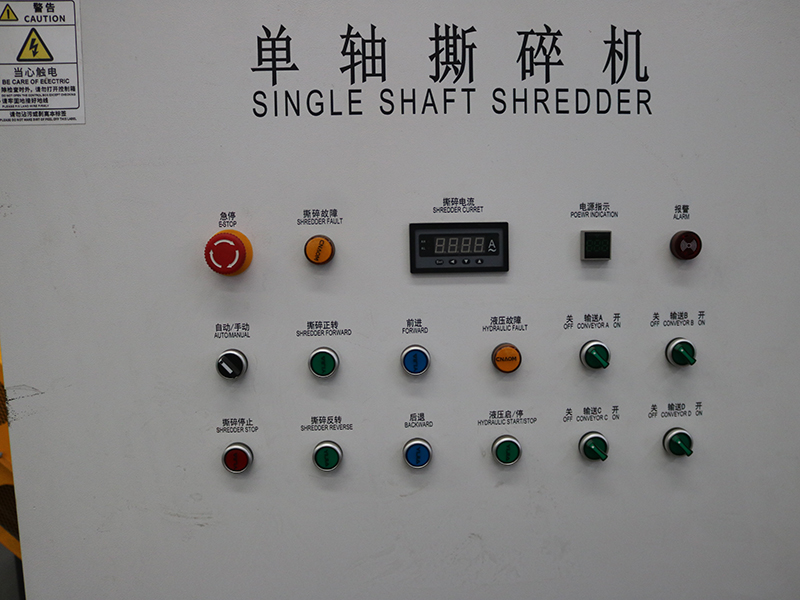

PLC programming control: the machine is controlled by self-devel-oped PLC program, which can automatically rotate forward and backward, making the operation of the machines are simpler and more reliable.
Moving hopper design: Designed for filamentous, soft materials, and large volume materials etc.

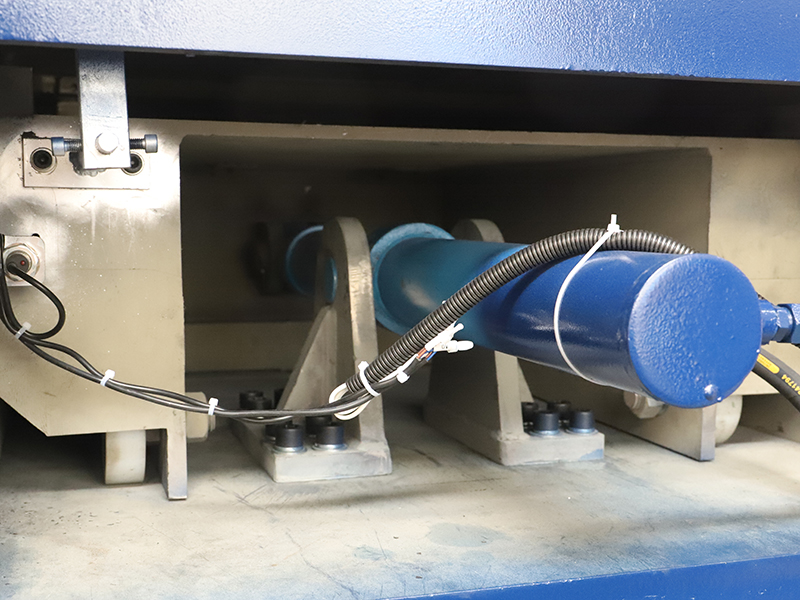

Hydraulic pushing function: controlled by PLC program, pushing speed can be adjusted according to different materials by manual.

Specifications

HNS600-2000

Model	HNS600	HNS800	HNS1000	HNS1200	HNS1500	HNS1800	HNS2000
Motor Powder(kw)	22/30	45/55	55/75	75	90-110	160	180-220
Diameter of Rotor(mm)	280	420	420	420	420	500	600
QTY of Rotary Blades(pcs)	30	33	42	50	60	100	140
QTY of Fixed Blades(pcs)	2	2	2	2	3	3	4
Hydraulic Powder(KW)	2.2	3	5.5	7.5	11	11	15
Chamber Size(mm)	650×600	800×800	1000×1000	1200×1100	1500×1100	1800×1300	2000×1500
Feeding Size x f(mm)	1250×1070	1600×1200	1600×1500	1800×1600	2100×2000	2100×2000	2100×2000
Discharging Size h x W(mm)	650×620	800×840	900×1050	900×1250	900×1500	1000×1800	1200×2000
Dimension Lx W x H(mm)	2300x1850x1840	2750x2100x2190	3150x2500x2200	3500x2750x2300	3750x2500x2400	4300x3100x2500	4750x3400x2600
Capacity(Kg/hr)	300-500	400-700	600-1000	800-1200	1500-2000	2000-3000	3000-5000
Weight(Kg)	2850	4500	5100	7500	9500	12500	18000
