HNM series moving hopper single shaft shredder

Typical Applications Include:

Nylon and engineering plastics – including PA, PC, POM, and other high-strength industrial plastics.
Plastic pipes and profiles – such as PE pipes, PVC window frames, and ABS profiles.
Film rolls and woven fabric bales – including packaging films, woven sacks, and laminated materials
Foam materials – such as EPE, EPS, sponge, and polyurethane foam.
Copper and aluminum cables – electric wires, communication cables, and cable harness waste.
Medical waste – such as disposable syringes, medical packaging, and plastic containers.
Household waste – including plastic barrels, buckets, and daily-use plastic products.
Agricultural waste – such as greenhouse films, drip irrigation pipes, and fertilizer bags.
Food and beverage industry waste – PET bottles, food trays, and packaging containers.

+ Add to Inquiry

+8618135670183

Description

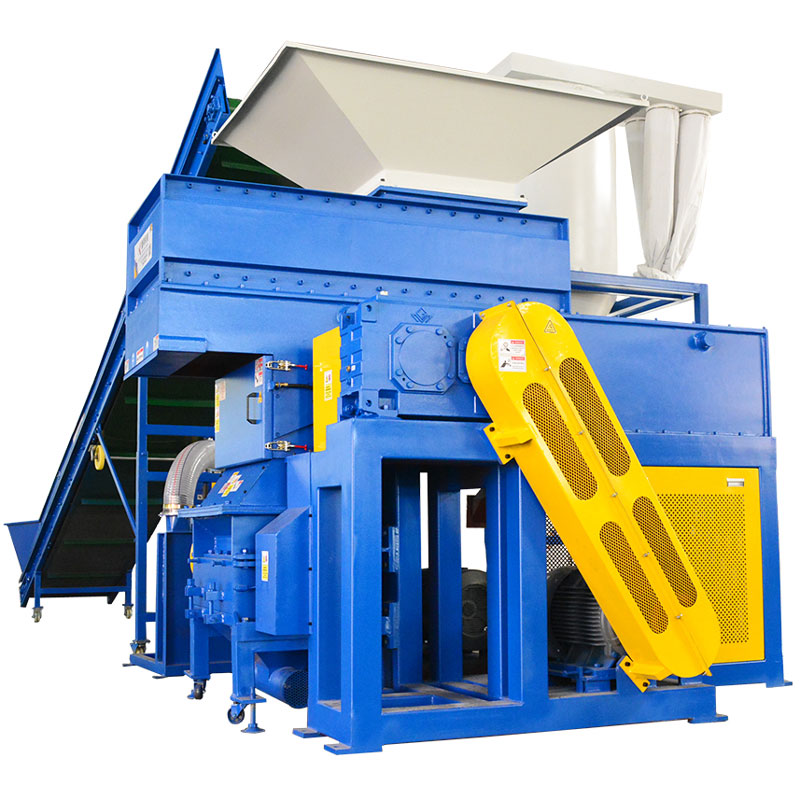

The HNM Series Moving Hopper Single Shaft Shredder from Honest is a highly efficient and intelligent machine designed for flexible material handling and continuous operation. Its innovative movable hopper allows for easy feeding of different materials, while the hydraulic pushing system ensures steady and uniform input, improving overall shredding performance and productivity.

This shredder is widely used for processing a variety of materials, including engineering plastics, plastic pipes, films, foams, cables, and other industrial waste. The strong rotor structure and high-quality, wear-resistant blades ensure powerful cutting performance and long service life, even under demanding working conditions.

Equipped with an advanced PLC control system, the machine offers precise operation, user-friendly control, and easy maintenance. With features such as low energy consumption, stable operation, and high output efficiency, the HNM Series provides a reliable and cost-effective solution for plastic recycling, waste reduction, and material recovery applications.

Features

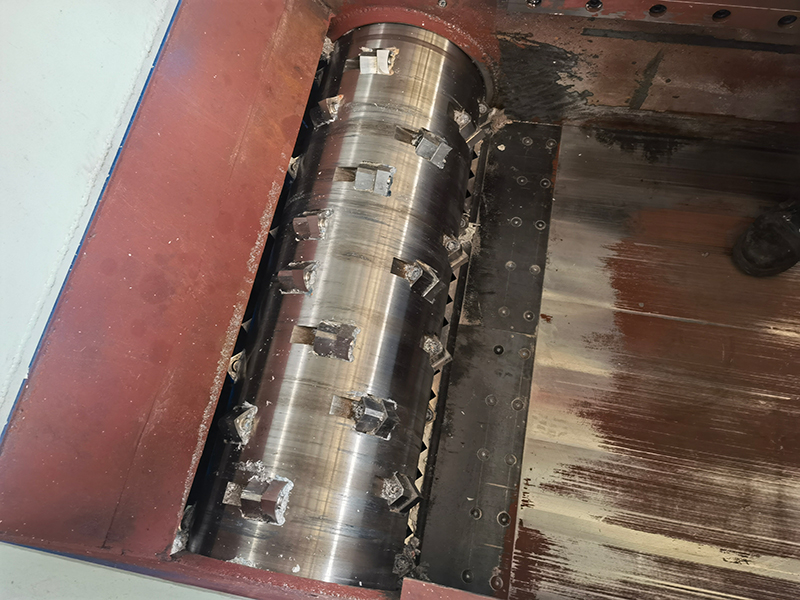

Small square knives: more using life with changing cutting edges, and easy to change.

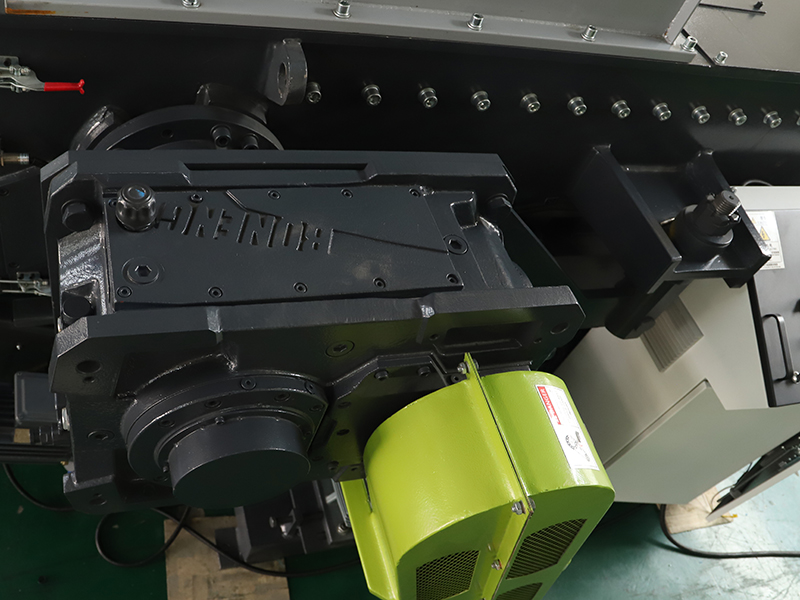

The reducer is fixed on the frame design: reducing the damage of working vibration to the reducer, and ensuring more stable torque output.

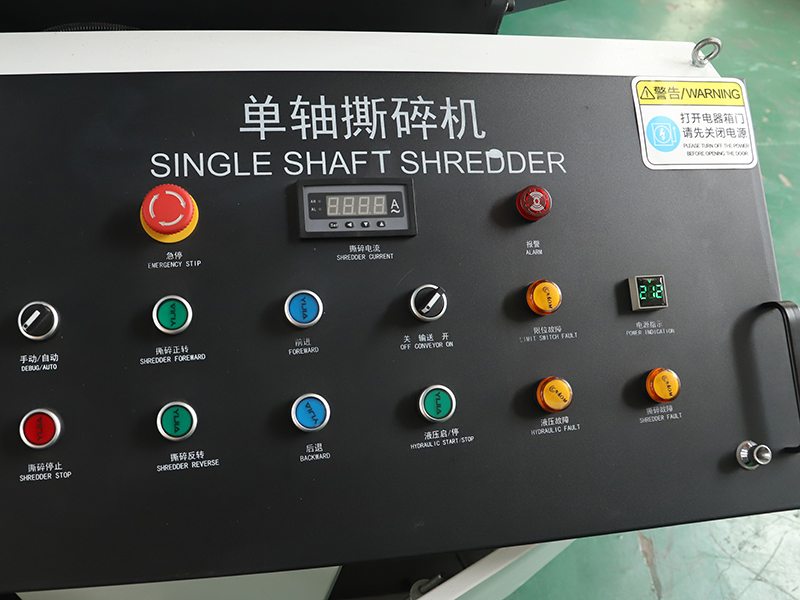

PLC programming control: the machine is controlled by self-devel-oped PLC program, which can automatically rotate forward and backward, making the operation of the machines are simpler and more reliable.
Moving hopper design: Designed for filamentous, soft materials, and large volume materials etc.
Hydraulic pushing function: controlled by PLC program, pushing speed can be adjusted according to different materials by manual.

Specifications

XRM760-2000

Model	HNM760	HNM800	HNM1000	HNM1200	HNM1500	HNM2000
Motor Powder(kw)	37	45/55	55/75	75-110	110-160	110+110
Diameter of Rotor(mm)	420	420	420	550	550	600
QTY of Rotary Blades(pcs)	30	33	42	68	105	135
QTY of Fixed Blades(pcs)	1	2	2	2	3	4
Hydraulic Powder(KW)	3	4	5.5	7.5	11	15
Chamber Size(mm)	760×700	840×800	1050×1000	1250×1100	1500×1100	2000×1200
Feeding Size x f(mm)	1400×1050	1500×1150	1600×1500	2000×1600	2700×1800	2700×2200
Discharging Size h x W(mm)	650×760	800×840	800×1050	900×1250	930×1500	1000×2000
Dimension Lx W x H(mm)	3100x2150x2280	3500x2250x2280	3760x2450x2280	4650x3050x2600	4850x3400x2600	5200x4000x3000
Capacity(Kg/hr)	200-300	300-600	500-1000	1200-2000	2000-3000	3000-5000
Weight(Kg)	3500	4000	5500	11000	13000	16000
