HNP series single shaft shredder

Typical Applications Include:

PVC pipes – used in water supply, drainage, and electrical conduit systems.
HDPE pipes – high-density polyethylene pipes for gas, water, and irrigation use.
PP pipes – polypropylene pipes for chemical and industrial fluid transport.
ABS pipes and fittings – commonly used in construction and drainage systems.
PE pipes – flexible polyethylene pipes for agricultural and industrial applications.
Plastic profiles – including window frames, door frames, and decorative profiles.
Large diameter pipes – thick-walled or heavy-duty pipes for infrastructure projects.
Plastic bars and rods – various solid plastic extrusion products and waste.
Extrusion waste and pipe scraps – defective products and offcuts from pipe production lines.

+ Add to Inquiry

+8618135670183

Description

The HNP Series Single Shaft Shredder from Honest is specially designed for efficiently processing various types of plastic pipes and profiles. Featuring a large feeding hopper and a powerful rotor, it can easily handle long and thick pipes without the need for pre-cutting, significantly improving operational efficiency and reducing labor costs.

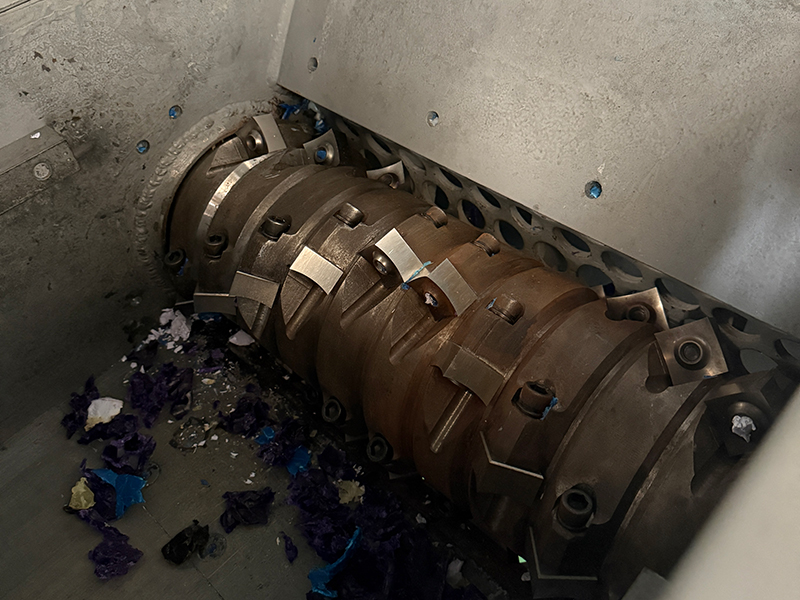

This machine is suitable for shredding materials such as PVC, HDPE, PP, PE, and ABS pipes, as well as extrusion profiles and production waste. Equipped with a heavy-duty gearbox, high-torque motor, and hydraulic pusher, it ensures stable operation, strong crushing capacity, and high throughput even under continuous working conditions.

Controlled by an intelligent PLC system, the HNP shredder offers automatic operation, overload protection, and adjustable output size. With durable, wear-resistant blades and a design focused on easy maintenance, it provides long service life and consistent output quality, making it an ideal solution for pipe recycling and waste reduction.

Features

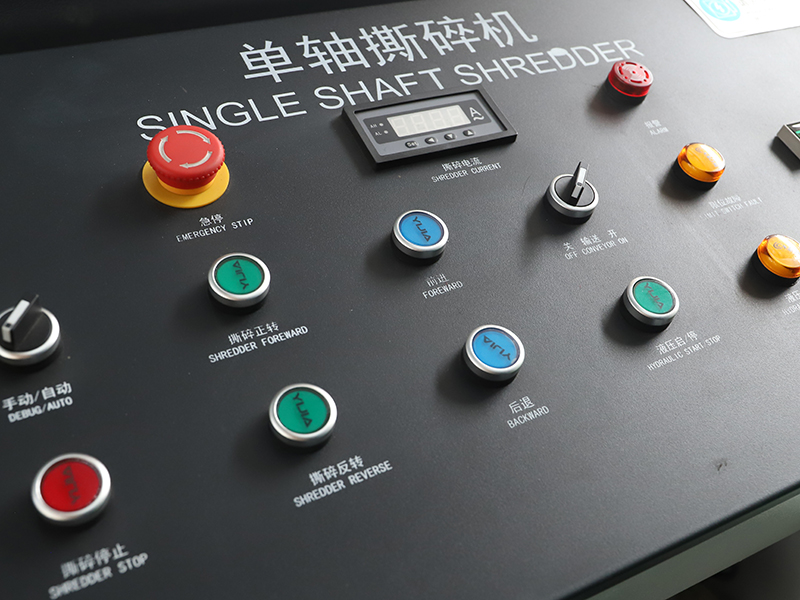

PLC programming control: the machine is controlled by self-devel-oped PLC program, which can automatically rotate forward and backward, making the operation of the machines are simpler and more reliable.
The reducer is fixed on the frame design: reducing the damage of working vibration to the reducer, and ensuring more stable torque output.
Plastic pipes can be directly on the frame design: reducing thw damage of working vibration to the reducer, and ensuring more stable torque output.

Specifications

HNP600-1200

Model	HNP600	HNP800	HNP1000	HNP1200
Motor Powder(kw)	22/30	45/55	55/75	75
Diameter of Rotor(mm)	280	420	420	420
QTY of Rotary Blades(pcs)	26+4	33	42	50
QTY of Fixed Blades(pcs)	2	2	2	2
Hydraulic Powder(KW)	2.2	3	5.5	7.5
Chamber Size(mm)	650×600	800×800	1000×1000	1200×1100
Feeding Size x f(mm)	480×480	680×680	800×800	1000×1000
Discharging Size h x W(mm)	650×620	800×840	800×1050	900×1200
Dimension Lx W x H(mm)	2650x1560x1950	3400x2100x2150	3600x2300x2200	43900x2500x2300
Capacity(Kg/hr)	300	400-700	600-800	800-1200
Weight(Kg)	2850	5000	5500	8200
MAX.Diameter of Pipe(mm)	350	630	800	1000
