HN series single shaft shredder

Typical Applications Include:

Plastic Waste – Suitable for PE, PP, PET, and PVC materials such as bottles, films, pipes, and plastic barrels.
Rubber Products – Can shred used tires, rubber mats, shoe soles, and sealing strips effectively.
Metal Scrap – Handles aluminum pieces, beverage cans, and small metal parts for recycling.
Electronic Waste (E-Waste) – Efficient for shredding circuit boards, cables, computer components, and mobile shells.
Wood Waste – Ideal for wood pallets, furniture scraps, and construction wood waste recycling.
Paper and Cardboard – Can process corrugated boxes, packing paper, and office documents.
Textiles and Leather – Suitable for old clothes, fabric offcuts, and leather scraps.
Municipal Solid Waste – Used for size reduction of mixed household garbage and general waste.
Foam and Lightweight Materials – Efficiently shreds EPE, EPS, and other foam packaging materials.

+ Add to Inquiry

+8618135670183

Description

The HN Shredder from Honest is a high-performance industrial shredding machine designed for efficient size reduction of various waste materials. Equipped with a powerful dual-shaft system, it delivers strong torque and stable operation, ensuring reliable shredding performance even with tough and bulky materials. The XR 600 is suitable for plastics, rubber, metal scrap, e-waste, wood, cardboard, textiles, and more. Built with heavy-duty structure and wear-resistant blades, the Honest XR 600 offers long service life, low noise, and easy maintenance. It is widely used in recycling plants, waste treatment facilities, and resource recovery industries. By using the XR 600 Shredder, users can effectively reduce material volume, improve recycling efficiency, and contribute to environmental sustainability.

Features

Small square knives: more using life with changing cutting edges, and easy to change the knives.
Hydraulic pushing function: controlled by PLC program, pushing speed can be adjusted according to different materials by manual.

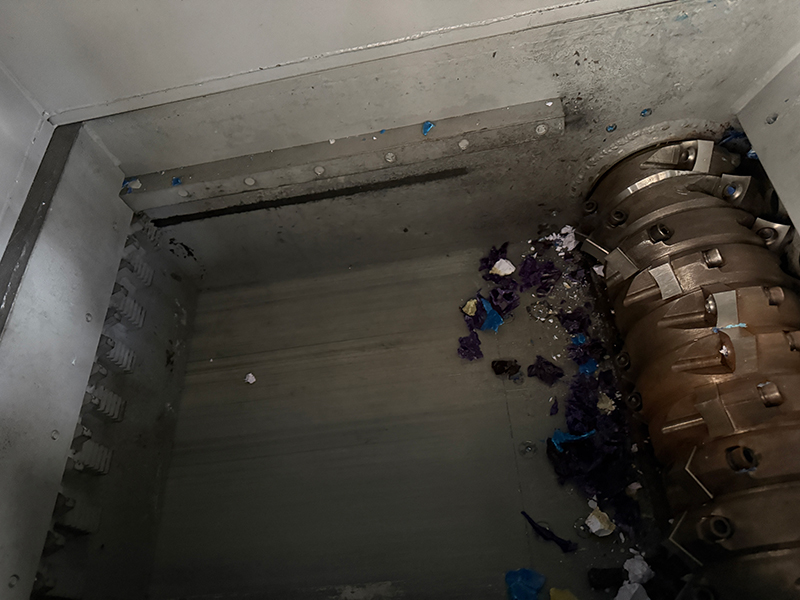

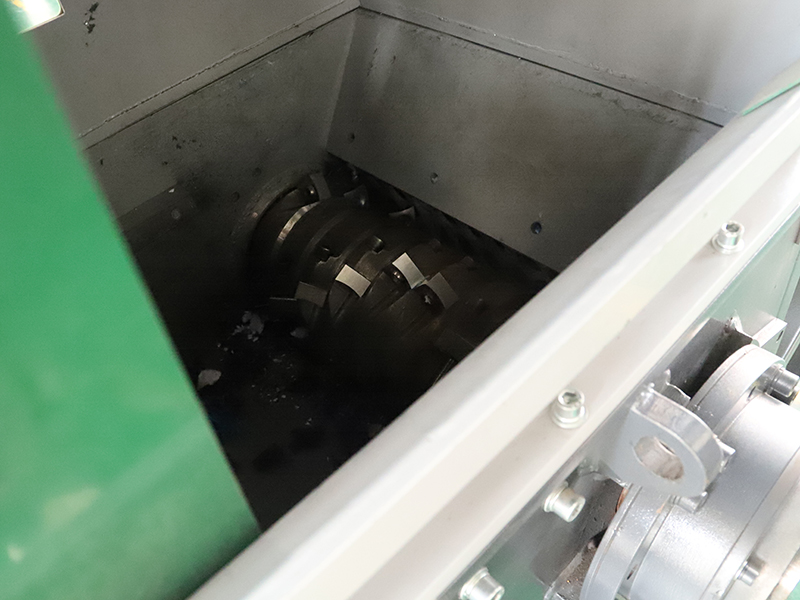

Three types of cutting rotor design: use different type of cutting rotor according to different materials.
PLC programming control: the machine is controlled by self-devel-oped PLC program, which can automatically rotate forward and backward, making the operation of the machines are simpler and more reliable.

Specifications

HN450-2000

Model	HN450	HN600	HN700	HN800	HN1000	HN1200	HN1500	HN1800	HN2000

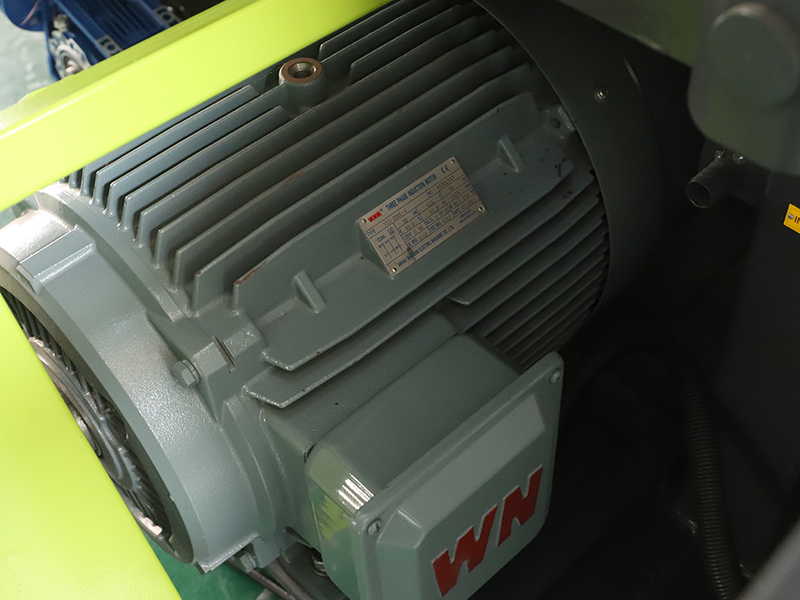

Motor Powder(kw)	15	22	37	45	55	75	90-110	110-180	180-220
Rotation Diameter(Φmm)		480	480	650	650	650	800	800	800
Diameter of Rotor(mm)	220	280	400	400	400	400	400	500	600
QTY of Rotary Blades(pcs)	22	26+4	30	34+4	46	68	78	98	110
QTY of Fixed Blades(pcs)	1	2	2	2	2	2	3	3	4
Hydraulic Powder(KW)	1.1	2.2	3	3	5.5	7.5	11	11	15
Chamber Size(mm)	450×400	650×600	450×700	800×800	1000×1000	1200×1100	1500×1100	1800×1300	2000×1500
Feeding Size x f(mm)	800×750	1250×1070	1250×1170	1600×1200	1600×1500	1800×1600	2100×2000	2100×2000	2100×2000
Discharging Size h x f(mm)	650×410	650×620	650×700	800×810	900×1050	900×1250	900×1500	1000×1800	1200×2000
Dimension Lx W x H(mm)	1850x1280x1700	2290x1560x1840	2300x1600x1840	2750x1800x2190	3150x2100x2300	3250x2200x2300	3500x2500x2400	4000x2800x2500	4500x3200x2600
Capacity(Kg/hr)	100-150	300-500	400-500	400-700	600-1000	800-1200	1500-2000	2000-3000	3000-5000
Weight(Kg)	1200	2300	3200	3800	4500	6500	8000	11000	15000
